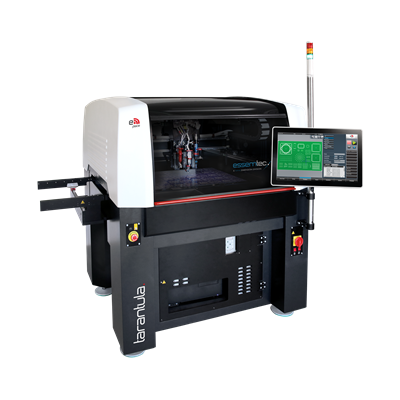

SMT

dispense technology

• Up to 3 valves simultaneously

• 5 different valves, large application range

process control

• Monitoring sizes 8 weight of dispense dots

• Process control adjustment and dot stabilisation

productivity

• Valve up to 780'000 -System ∅ 280'000 dots/h

• Up to 2'000'000 dots/h line mode (Piezo Jet)

large dispense area

• PCB size 560 x 610 mm, optional 1'800 x 610 mm

• Up to 80 mm programmable Z stroke (3.35")

mineral cast chassis

• No vibration, symmetrical mineral casting

• No warpage, no thermal drift

linear motors

• Fast, reliable double drive linear motors

• No maintenance, longest lifetime

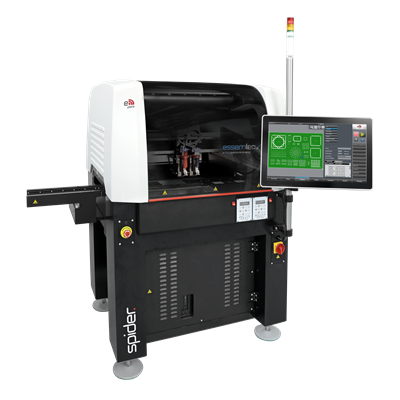

dispense technology

• Up to 2 valves simultaneously

• 5 different valves, large application range

productivity

• Valve up to 780'000 -System ∅ 280'000 dots/h

• Up to 2'000'000 dots/h line mode (Piezo Jet)

small footprint

• Requires only 1 ㎡ of production floor

• Machine fits through 90 cm wide door

mineral cast

• No vibration, symmetrical mineral casting

• No warpage, no thermal drift

laser height mapping

• Mapping of heights using laser technology

• Compensation of substrate warp /3D contour

linear motors

• Fast, reliable double drive linear motors

• No maintenance, longest lifetime
